HANGZHOU PERFORMANCE CENTER

INVESTIGATION OF CONCEALING + SPATIAL TRANSFORMATION IN TEXTILES : SITED ADJACENT TO WEST LAKE IN HANGZHOU, CHINA

SITE PLAN
SITE PLAN

Ink : Colored Pencil : Conte : Marker

press to zoom
PROCESS SITE PLAN DIAGRAM
PROCESS SITE PLAN DIAGRAM

Pastels : Ink

press to zoom
CONCEPTUAL ELEVATION SKETCH
CONCEPTUAL ELEVATION SKETCH

Ink

press to zoom

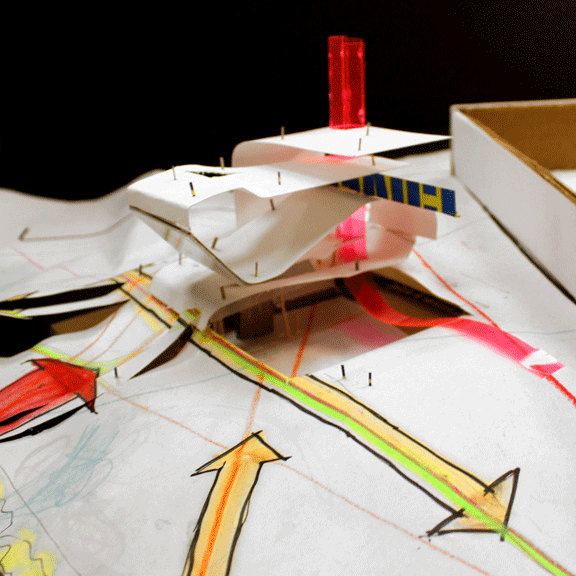

PROCESS MODEL
PROCESS MODEL

Recycled Paper : Pastels : Plastic : Marker

press to zoom
PROCESS MODEL
PROCESS MODEL

Recycled Paper : Foam : Wax : Marker

press to zoom
CONCEPTUAL DIAGRAMS
CONCEPTUAL DIAGRAMS

Exterior Perspective + Circulation Diagram

press to zoom
FLOOR PLAN CONCEPTUAL DIAGRAMS
FLOOR PLAN CONCEPTUAL DIAGRAMS

Atrium Floor Plan + Performance Diagrams

press to zoom
EXTERIOR PERSPECTIVE
EXTERIOR PERSPECTIVE

Plexiglass : Styrene : Illustration Board

press to zoom
EXTERIOR PERSPECTIVE
EXTERIOR PERSPECTIVE

Plexiglass : Styrene : Illustration Board

press to zoom
